| Light Source: | LED | Working Lifetime(hour): | 25000 |
|---|---|---|---|
| Ip Rating: | IP65/IP66/IP67 | Material: | Aluminum |
| Beam Angle: | 120 | ||
| High Light: | Texas Instruments LED Lighting Components,IP67 LED Lighting Components,SN74LVC1G17DBVR |
||

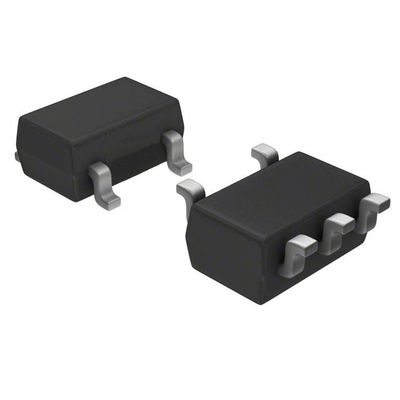

LED Lighting Components Texas Instruments/TI SN74LVC1G17DBVR
| ECAD Module | PCB Symbol,Footprint & 3D Model |
| Halogen Free | Compliant |
| Estimated EOL Date | 2031 |
| Alternative Parts (Cross-Reference) |
SN74LVC1G17DBVTG4; SN74LVC1G17DBVTE4; SN74LVC1G17DRY2; SN74LVC1G17DSF2; |
| ECCN | EAR99 |
| Application Field | Used in Signal Processing, Audio, Consumer Electronics, Power Management, Imaging, Video & Vision, Communications & Networking, Wireless |
| Supply and Demand Status | Sufficient |
| Fake Threat In the Open Market | 63 pct. |
| Popularity | High |
| Is this a common-used part? | Yes |
| Family Name | SN74LVC1G17 |
| Case / Package | SOT-23-5 |
| Mounting | SMD (SMT) |
| Temperature Range - Operating | -40°C to 125°C (TA) |
| Supply Voltage - Operating | 1.65 V to 5.5 V |
| Introduction Date | November 01, 2009 |
| Output Type | Push-Pull |
| Country of Origin | China, Malaysia, Thailand |
| Number of Bits per Element | 1 |
| Number of Elements | 1 |
| Logic Type | Buffer, Non-Inverting |
| Status | Active |
| Packaging | Reel - TR |
| Manufacturer | Texas Instruments |
| Categories | Integrated Circuits |
| Current - Output High, Low | 32mA, 32mA |
| Input Type | Schmitt Trigger |
This single Schmitt-trigger buffer is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G17 device contains one buffer and performs the Boolean function Y = A.
The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range.
The SN74LVC1G17 is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8mm.
