Product Details:
Payment & Shipping Terms:
|
Light Source: | LED | Lamp Power(w): | 150 |
---|---|---|---|
Type: | Outdoor Led Street Light, Outdoor Lighting | Item Type: | Street Lights |
Lamp Body Material: | Aluminum | ||
High Light: | Adjustable Current Limiting IC Chip,TPS2552DRVT-1 Current Limiting IC Chip,TI IC Integrated Circuit |

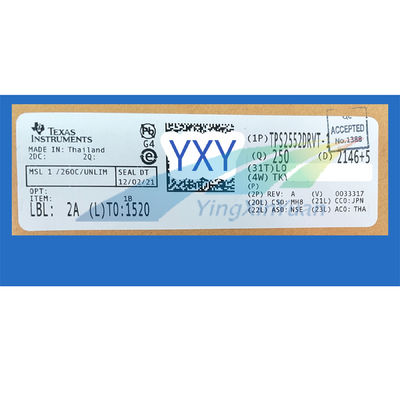

Display Driver IC Texas Instruments/TI TPS2552DRVT-1
Vin (Min) (V) | 2.5 |
Vin (Max) (V) | 6.5 |
Continuous current (Max) (A) | 1.5 |
Current limit (A) | 0.075 to 1.7 |
Product type | Adjustable current limit, Power switch |
Operating temperature range (C) | -40 to 85 |
Enable | Active Low |
Number of switches | 1 |
Rating | Catalog |
The TPS255x and TPS255x-1 power-distribution switches are intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered and provide up to 1.5 A of continuous load current. These devices offer a programmable current-limit threshold between 75 mA and 1.7 A (typical) through an external resistor. Current-limit accuracy as tight as ±6% can be achieved at the higher current-limit settings. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.
TPS255x devices limit the output current to a safe level by using a constant-current mode when the output load exceeds the current-limit threshold. TPS255x-1 devices provide circuit breaker functionality by latching off the power switch during overcurrent or reverse-voltage situations. An internal reverse-voltage comparator disables the power-switch when the output voltage is driven higher than the input to protect devices on the input side of the switch. The FAULT output asserts low during overcurrent and reverse-voltage conditions.
