AMP MMIC RF Amplifier IC LNA 6XSON BGU8009 RF / IF and RFID

AMP MMIC RF Amplifier IC LNA 6XSON BGU8009 RF / IF and RFID
AMP MMIC RF Amplifier IC LNA 6XSON BGU8009 RF / IF and RFID AMP MMIC RF Amplifier IC LNA 6XSON BGU8009 RF / IF and RFID AMP MMIC RF Amplifier IC LNA 6XSON BGU8009 RF / IF and RFID AMP MMIC RF Amplifier IC LNA 6XSON BGU8009 RF / IF and RFID

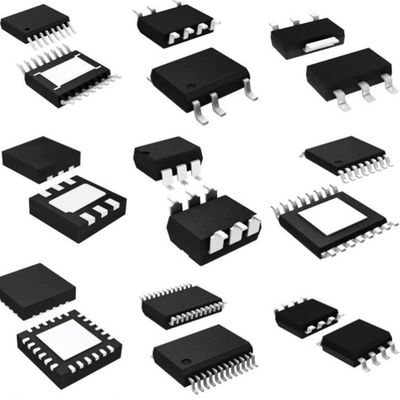

Large Image :  AMP MMIC RF Amplifier IC LNA 6XSON BGU8009 RF / IF and RFID

Product Details:
Place of Origin: N/S
Certification: /
Model Number: BGU8009
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiation
Delivery Time: 2-7 work days
Payment Terms: T/T
Supply Ability: 9999999+PCS
Detailed Product Description
Categories: RF/IF And RFID Frequency: 1.559GHz To 1.61GHz
RF Type: Galileo, GLONASS, GPS Supply Voltage - Operating: 1.5 V To 3.1 V
Operating Supply Current: 4.4mA
High Light:

MMIC RF Amplifier IC

,

LNA RF Amplifier IC

,

RFID Electronic IC Chip

RF Amplifiers IC AMP MMIC LNA 6XSON BGU8009 RF/IF and RFID

Categories RF/IF and RFID
Manufacturer
Packaging Reel - TR
Status Active
Frequency 1.559GHz to 1.61GHz
P1dB -7dBm
Gain 18dB
Noise Figure 0.65dB
RF Type Galileo, GLONASS, GPS
Supply Voltage - Operating 1.5 V to 3.1 V
Operating Supply Current 4.4mA
Test Frequency 1.559GHz to 1.61GHz
Case / Package 6-XSON (1.1x0.9)
Win Source Part Number 093906-BGU8009
Is this a common-used part? Yes
Popularity High
Fake Threat In the Open Market 29 pct.
Supply and Demand Status Sufficient



The BGU8009 is, also known as the GPS1201M, a Low-Noise Amplifier (LNA) for GNSS receiver and LTE Band 32 down link applications. This BGU8009 is available in a small plastic 6-pin extremely thin leadless package. The BGU8009 requires one external matching inductor and one external decoupling capacitor. The BGU8009 adapts itself to the changing environment resulting from co-habitation of different radio systems in modern cellular handsets. It has been designed for low power consumption and optimal performance when jamming signals from co-existing cellular transmitters are present. At low jamming power levels, it delivers 18 dB gain at a noise figure of 0.65 dB. During high jamming power levels, resulting, for example from a cellular transmit burst, it temporarily increases its bias current to improve sensitivity.
